HAVACO ICB-P-EC duct fan
The most important product features
Rotor made of galvanized sheet metal with backward inclined blades, dynamically balanced
Junction box attached directly to the housing
Adapted for voltage regulation. Degree of protection IP44
Adapted for pumping air with a temperature of up to 60 °C
- Variants & availability
- Description

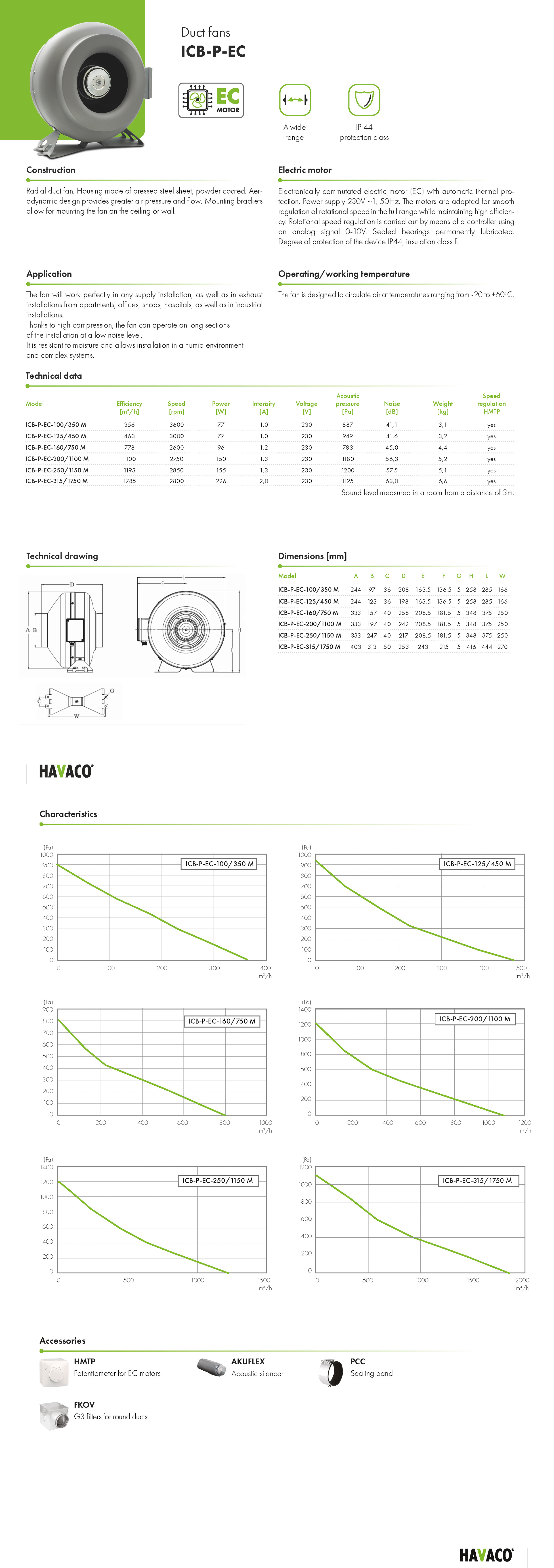

- Catalogue card
- Downloads
Product name
Capacity [m3/h]
Power [W]
Intensity [A]
Price
Availability
Capacity [m3/h]
Power [W]
Intensity [A]
Availability
Capacity [m3/h]
Power [W]
Intensity [A]
Availability
Capacity [m3/h]
Power [W]
Intensity [A]
Availability
Capacity [m3/h]
Power [W]
Intensity [A]
Availability
Capacity [m3/h]
Power [W]
Intensity [A]
Availability
Capacity [m3/h]
Power [W]
Intensity [A]
Availability
Please write to us for special price
Do you have questions about this product?
Call us
+48 22 688 07 00Write an e-mail
info@ventia.plContact your sales representative
- Warsaw
- Warsaw
- Warsaw
- Warsaw
- Warsaw
- Warsaw
- Warsaw
- Warsaw
- Warsaw
- Warsaw
- Warsaw
- Warsaw
- Warsaw
Duct fans ICB-P-EC
Construction
Radial duct fan. Housing made of pressed steel sheet, powder coated. Aerodynamic design provides greater air pressure and flow. Mounting brackets allow for mounting the fan on the ceiling or wall.
Electric motor
Electronically commutated electric motor (EC) with automatic thermal protection. Power supply 230V ~1, 50Hz. The motors are adapted for smooth regulation of rotational speed in the full range while maintaining high efficiency. Rotational speed regulation is carried out by means of a controller using an analog signal 0-10V. Sealed bearings permanently lubricated. Degree of protection of the device IP44, insulation class F.
Application
The fan will work perfectly in any supply installation, as well as in exhaust installations from apartments, offices, shops, hospitals, as well as in industrial installations. Thanks to high compression, the fan can operate on long sections of the installation at a low noise level. It is resistant to moisture and allows installation in a humid environment and complex systems.
Operating temperature
The fan is designed to circulate air at temperatures ranging from -20 to +60oC.
