Insulated copper pipe EBRILLE HAVACO

- Soft copper pipe made of high-purity copper (approx. 99.9% Cu)

- White insulation made of foamed polyurethane

- High resistance to weather conditions and mechanical damage

Properties:

- Reaction to fire class: BL s1 d0

- Thermal conductivity [λ]: 0.040 W*m-1*K-1 at 40°C

- Operating temperature [°C]: -45 to +110

- Water vapour permeability [µ]: >11,000



  • Variants & availability
  • Catalogue card
  • Downloads

Product name

Outer diameter [mm]

Wall thickness [mm]

Insulation thickness [mm]

Lenght [m]

Price

Availability

Product name

Insulated copper pipe EBRILLE 1/4x0,8 - 25 rm

Outer diameter [mm]

6,35

Wall thickness [mm]

0,8

Insulation thickness [mm]

6

Lenght [m]

25

Price

405,00

Availability

Product name

Insulated copper pipe EBRILLE 1/4x0,8 - 50 rm

Outer diameter [mm]

6,35

Wall thickness [mm]

0,8

Insulation thickness [mm]

6

Lenght [m]

50

Price

810,00

Availability

Product name

Insulated copper pipe EBRILLE 3/8x0,8 - 25 rm

Outer diameter [mm]

9,52

Wall thickness [mm]

0,8

Insulation thickness [mm]

6

Lenght [m]

25

Price

583,00

Availability

Product name

Insulated copper pipe EBRILLE 3/8x0,8 - 50 rm

Outer diameter [mm]

9,52

Wall thickness [mm]

0,8

Insulation thickness [mm]

6

Lenght [m]

50

Price

1.166,00

Availability

Product name

Insulated copper pipe EBRILLE 1/2x0,8 - 25 rm

Outer diameter [mm]

12,7

Wall thickness [mm]

0,8

Insulation thickness [mm]

9

Lenght [m]

25

Price

763,00

Availability

Product name

Insulated copper pipe EBRILLE 1/2x0,8 - 50 rm

Outer diameter [mm]

12,7

Wall thickness [mm]

0,8

Insulation thickness [mm]

9

Lenght [m]

50

Price

1.526,00

Availability

Please write to us for special price

Do you have questions about this product?

Write an e-mail

info@ventia.pl

Contact your sales representative

  • Warsaw
  • Warsaw
  • Warsaw
  • Warsaw
  • Warsaw
  • Warsaw
  • Warsaw
  • Warsaw
  • Warsaw
  • Warsaw
  • Warsaw
  • Warsaw
  • Warsaw
  • Warsaw

Head Office

Head Office

Head Office

Head Office

Head Office

Head Office

Head Office

Head Office

Head Office

Head Office

Head Office

Head Office

Head Office

Head Office

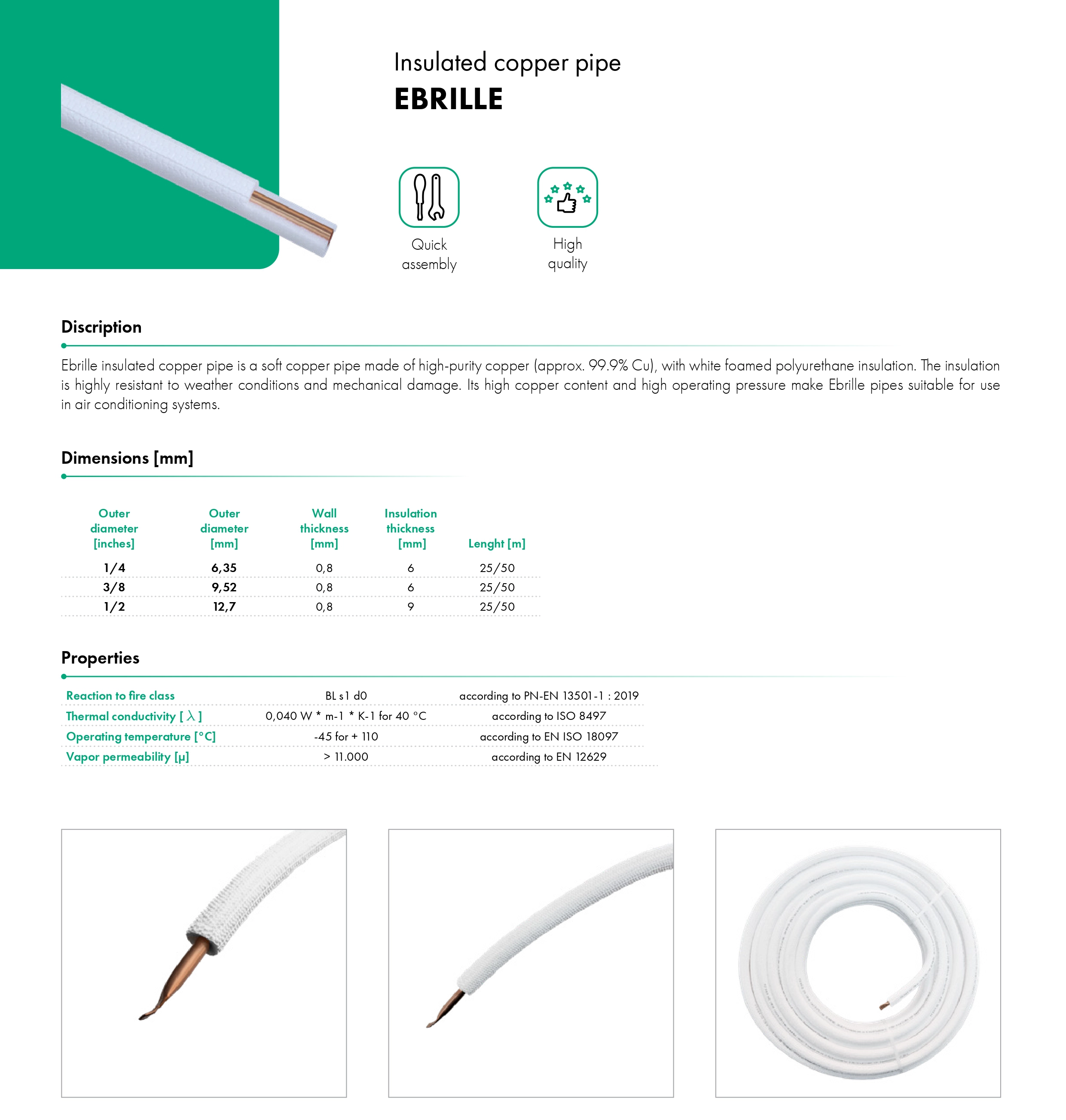

Catalogue card Insulated copper pipe EBRILLE
